Home > Products > Electric Power Distribution System > Power
Yr80.242 Puls Power Supply Mosfet Redundancy Module24V 80 A2X 40A Input Yr80.242 Puls Power Supply Mosfet Redundancy Module24V 80 A2X 40A Input Yr80.242 Puls Power Supply Mosfet Redundancy Module24V 80 A2X 40A Input Yr80.242 Puls Power Supply Mosfet Redundancy Module24V 80 A2X 40A Input Yr80.242 Puls Power Supply Mosfet Redundancy Module24V 80 A2X 40A Input

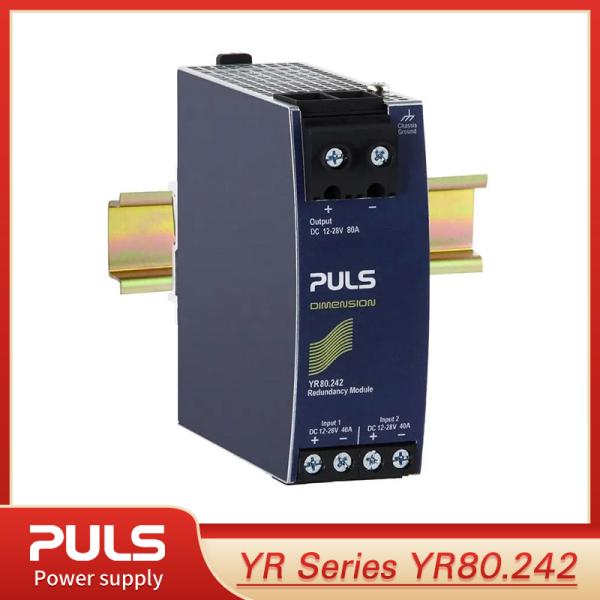

Yr80.242 Puls Power Supply Mosfet Redundancy Module24V 80 A2X 40A Input

FOB Price:
USD 186-206 / Piece
Min.Order Quantity:
1 Piece
Supply Ability:
100 Piece per Day
Port:
Ningbo
Place of Origin:
Czech Republic
Payment Terms:
T/T, Western Union, Cash
Brand:
PULS
Products Model:
Yr80.242
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: PULS

    Model Number: Yr80.242

    Place of Origin: Czech Republic

Packaging & Delivery

  • Packaging Details: carton
  • Delivery Detail: 1-2 days

Specifications

Input data

Input current 2 x 40 A
Nominal current per input 40 A
DC Input voltage DC 12 V - 28 V
Voltage drop 65 mV

Output data

Output current range 80 A
Output current 80 A
Output current short circuit max. 44 A
Derating 2 W/°C for >+60 °C

Overview

Dimensions (WxHxD) 46 mm x 124 mm x 127 mm
Weight per unit (excl. packaging) 370 g
Mounting method DIN rail
Operating temp. range -40 °C to 70 °C
Connection method Screw terminals
Power losses, typ. 2.9 W
No-load losses, typ. 0.2 W
MTBF SN 29500 @ 40 °C (h) 2500000 h


Yr80.242 Puls Power Supply Mosfet Redundancy Module24V 80 A2X 40A InputYr80.242 Puls Power Supply Mosfet Redundancy Module24V 80 A2X 40A InputYr80.242 Puls Power Supply Mosfet Redundancy Module24V 80 A2X 40A Input
